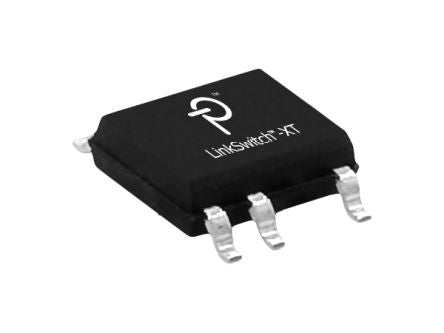

Power Integrations LNK563DN Link Switch, Off Line Switcher, 375mA, 2.5W 8-Pin, SOC [LNK563DN]; 146-5684
0₫
Mã kho: 1465684
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Off Line Switcher |
| Switch On Resistance | 88Ω |
| Number of Outputs | 1 |
| Current | 375mA |
| Power Rating | 2.5W |
| Mounting Type | Surface Mount |
| Package Type | SOC |
| Pin Count | 8 |
| Power Switch Features | Energy Efficient, Lowest Component Count |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Length | 4.9mm |
| Protection Features | Over-Temperature |
| Width | 3.9mm |
| Height | 1.5mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Series | LNK563 |
