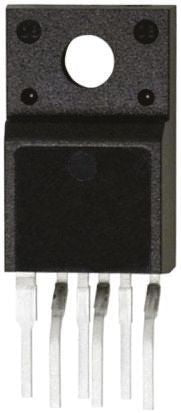

ON Semiconductor FSGM0565RLDTU Intelligent Power Switch, Off Line Switcher, 2.2A, 26V, 70 6-Pin, TO-220F [FSGM0565RLDTU]; 772-8913
0₫
Mã kho: 7728913
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Off Line Switcher |
| Switch On Resistance | 2.2Ω |
| Number of Outputs | 1 |
| Voltage | 26V |
| Current | 2.2A |
| Power Rating | 70 |
| Mounting Type | Through Hole |
| Package Type | TO-220F |
| Pin Count | 6 |
| Dimensions | 10.36 x 4.8 x 16.08mm |
| Length | 10.36mm |
| Width | 4.8mm |
| Height | 16.08mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
