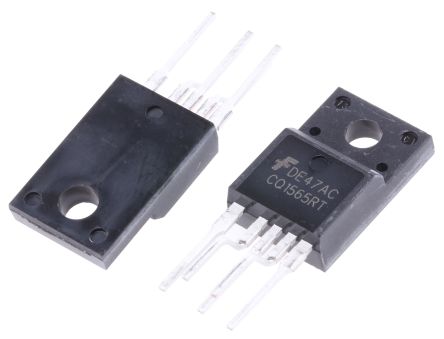

ON Semiconductor FSCQ1565RTYDTU Intelligent Power Switch 5-Pin, TO-220F [FSCQ1565RTYDTU]; 166-2720
0₫
Mã kho: 1662720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch On Resistance | 0.53Ω |
| Number of Outputs | 1 |
| Mounting Type | Through Hole |
| Package Type | TO-220F |
| Pin Count | 5 |
| Dimensions | 10.16 x 4.7 x 9.19mm |
| Length | 10.16mm |
| Width | 4.7mm |
| Height | 9.19mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -25 °C |
