ON Semiconductor FPF2496UCX Intelligent Power Switch, Over-Current Protection, Over-Voltage, 2.5A, 3.5 → 5.5V [FPF2496UCX]; 166-3765
0₫
Mã kho: 1663765
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Over-Current Protection, Over-Voltage |
| Switch On Resistance | 100mΩ |
| Number of Outputs | 1 |
| Voltage | 3.5 → 5.5V |
| Current | 2.5A |
| Mounting Type | Surface Mount |

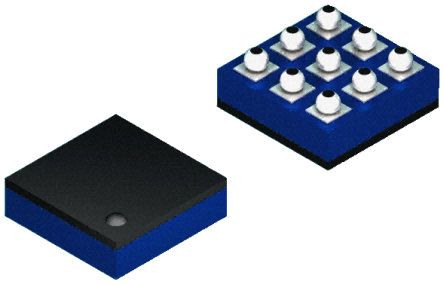

| Package Type | WLCSP |
| Pin Count | 9 |
| Dimensions | 1.21 x 1.21 x 0.37mm |
| Length | 1.21mm |
| Width | 1.21mm |
| Height | 0.37mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
