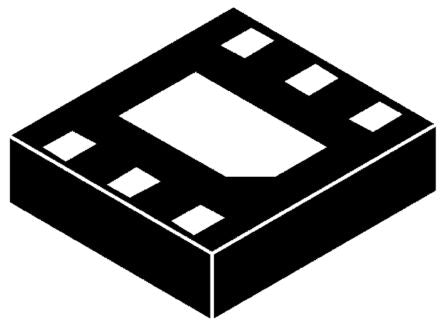

ON Semiconductor FPF2223 Intelligent Power Switch, Integrated Load Switch, 250 → 625mA, 1.8 → 5.5V, 3.8W [FPF2223]; 166-3764
0₫
Mã kho: 1663764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Integrated Load Switch |
| Switch On Resistance | 160mΩ |
| Number of Outputs | 1 |
| Voltage | 1.8 → 5.5V |
| Current | 250 → 625mA |
| Power Rating | 3.8W |
| Mounting Type | Surface Mount |
| Package Type | MLP |
| Pin Count | 6 |
| Dimensions | 2 x 2 x 0.725mm |
| Length | 2mm |
| Width | 2mm |
| Height | 0.725mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
