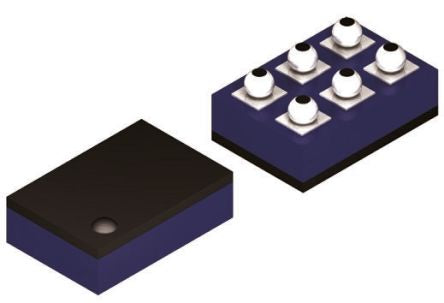

ON Semiconductor FPF1321UCX Intelligent Power Switch, Power Interface Switch, 1.5A, 1.5 → 5.5V, 1.2W 6-Pin, WLCSP [FPF1321UCX]; 166-1653
0₫
Mã kho: 1661653
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Power Interface Switch |
| Switch On Resistance | 60mΩ |
| Number of Outputs | 1 |
| Voltage | 1.5 → 5.5V |
| Current | 1.5A |
| Power Rating | 1.2W |
| Mounting Type | Surface Mount |
| Package Type | WLCSP |
| Pin Count | 6 |
| Dimensions | 1 x 1.5 x 0.332mm |
| Length | 1mm |
| Width | 1.5mm |
| Height | 0.332mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
