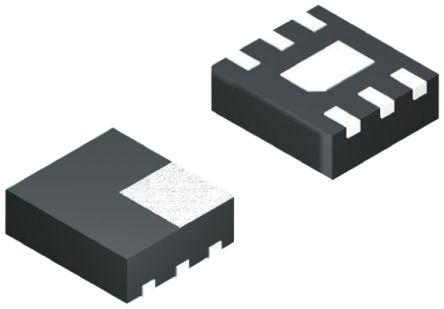

ON Semiconductor FPF1006, Dual Intelligent Power Switch, MOSFET Load Switch, 1.5A, 5.5V, 1.2W 6-Pin, MLP [FPF1006]; 166-2503
0₫
Mã kho: 1662503
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | MOSFET Load Switch |
| Switch On Resistance | 0.25Ω |
| Number of Outputs | 2 |
| Voltage | 5.5V |
| Current | 1.5A |
| Power Rating | 1.2W |
| Mounting Type | Surface Mount |
| Package Type | MLP |
| Pin Count | 6 |
| Dimensions | 2 x 2 x 0.75mm |
| Length | 2mm |
| Width | 2mm |
| Height | 0.75mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
