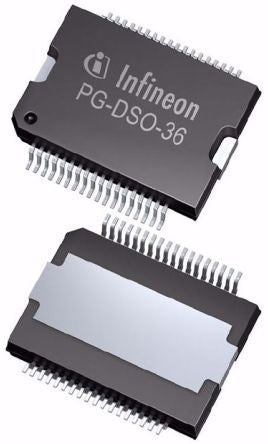

Infineon TLE6232GPAUMA2, 6-Channel Intelligent Power Switch, Low Side Power Switch, 2A, 4.5 → 5.5V 36-Pin, DSO-36 [TLE6232GPAUMA2]; 110-7721
by Infineon
0₫
Mã kho: 1107721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Low Side Power Switch |
| Switch On Resistance | 1Ω |
| Number of Outputs | 6 |
| Voltage | 4.5 → 5.5V |
| Current | 2A |
| Mounting Type | Surface Mount |
| Package Type | DSO-36 |
| Pin Count | 36 |
| Dimensions | 15.9 x 11 x 3.25mm |
| Length | 15.9mm |
| Width | 11mm |
| Height | 3.25mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
