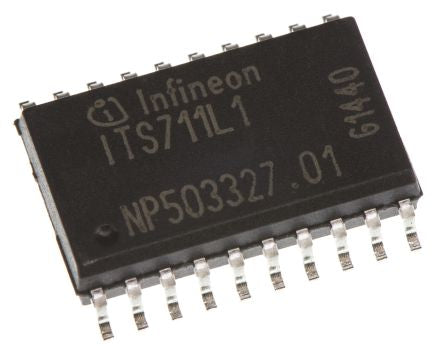

Infineon ITS711L1FUMA1, Quad Intelligent Power Switch, High Side, 4.4A, 5 → 34V 20-Pin, SOIC [ITS711L1FUMA1]; 753-3128
by Infineon
0₫
Mã kho: 7533128
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | High Side Switch |
| Switch On Resistance | 400mΩ |
| Number of Outputs | 4 |
| Voltage | 5 → 34V |
| Current | 4.4A |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Dimensions | 12.8 x 7.6 x 2.45mm |
| Length | 12.8mm |
| Width | 7.6mm |
| Height | 2.45mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -30 °C |
