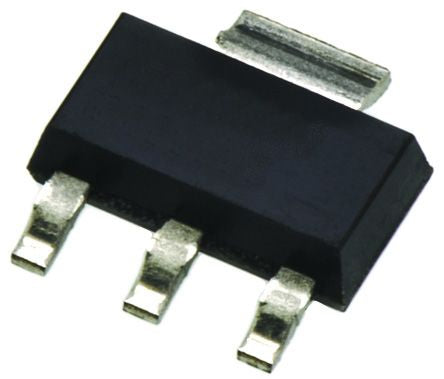

Infineon ITS4200SMEPHUMA1 Intelligent Power Switch, High Side Power Switch, 1.4 (Minimum)A, 11 → 45V 3+Tab-Pin [ITS4200SMEPHUMA1]; 110-7725
by Infineon
0₫
Mã kho: 1107725
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | High Side Power Switch |
| Switch On Resistance | 320mΩ |
| Number of Outputs | 1 |
| Voltage | 11 → 45V |
| Current | 1.4 (Minimum)A |
| Mounting Type | Surface Mount |
| Package Type | SOT-223 |
| Pin Count | 3+Tab |
| Dimensions | 6.5 x 3.5 x 1.6mm |
| Length | 6.5mm |
| Width | 3.5mm |
| Height | 1.6mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
