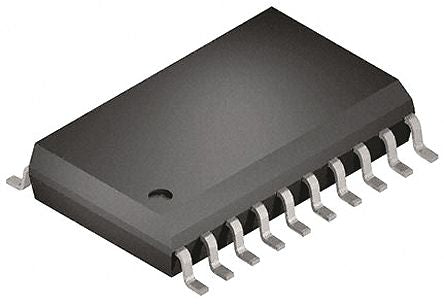

Infineon BTS716GBXUMA1, Quad Intelligent Power Switch, High Side, 2.6A, 40V 20-Pin, DSO [BTS716GBXUMA1]; 825-9124
by Infineon
0₫
Mã kho: 8259124
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | High Side Switch |
| Switch On Resistance | 280mΩ |
| Number of Outputs | 4 |
| Voltage | 40V |
| Current | 2.6A |
| Mounting Type | Surface Mount |
| Package Type | DSO |
| Pin Count | 20 |
| Dimensions | 15.9 x 11 x 3.25mm |
| Length | 15.9mm |
| Width | 11mm |
| Height | 3.25mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
