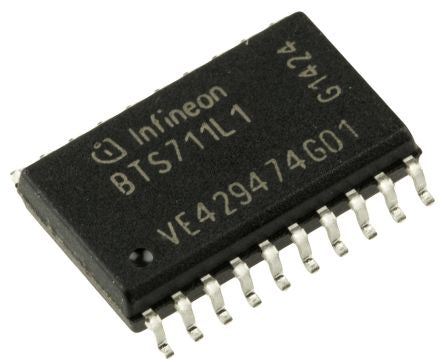

Infineon BTS711L1XUMA1, Quad Intelligent Power Switch, High Speed Switch, 7.5A, 16V 20-Pin, DSO [BTS711L1XUMA1]; 445-2326
by Infineon
0₫
Mã kho: 4452326
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | High Speed Switch |
| Switch On Resistance | 0.165Ω |
| Number of Outputs | 4 |
| Voltage | 16V |
| Current | 7.5A |
| Mounting Type | Surface Mount |
| Package Type | DSO |
| Pin Count | 20 |
| Dimensions | 12.8 x 7.6 x 2.45mm |
| Length | 12.8mm |
| Width | 7.6mm |
| Height | 2.45mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
