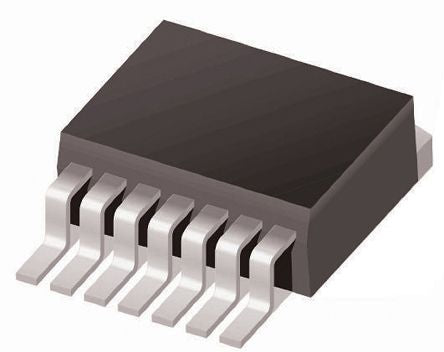

Infineon BTS500801TMAATMA1 Intelligent Power Switch, High Side, 9.5A, 5.5 → 38V 7-Pin, TO-220 [BTS500801TMAATMA1]; 165-8012
by Infineon
0₫
Mã kho: 1658012
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | High Side Switch |
| Switch On Resistance | 22mΩ |
| Number of Outputs | 1 |
| Voltage | 5.5 → 38V |
| Current | 9.5A |
| Mounting Type | Surface Mount |
| Package Type | TO-220 |
| Pin Count | 7 |
| Dimensions | 10 x 9.25 x 4.4mm |
| Length | 10mm |
| Width | 9.25mm |
| Height | 4.4mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
