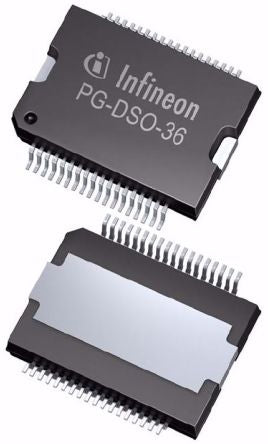

Infineon BTS4880RAUMA1, Octal Intelligent Power Switch, High Side Power Switch, -1 → 45V 36-Pin, DSO [BTS4880RAUMA1]; 110-7753
by Infineon
0₫
Mã kho: 1107753
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | High Side Power Switch |
| Switch On Resistance | 320mΩ |
| Number of Outputs | 8 |
| Voltage | -1 → 45V |
| Mounting Type | Surface Mount |
| Package Type | DSO |
| Pin Count | 36 |
| Dimensions | 15.9 x 11 x 3.25mm |
| Length | 15.9mm |
| Width | 11mm |
| Height | 3.25mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -25 °C |
