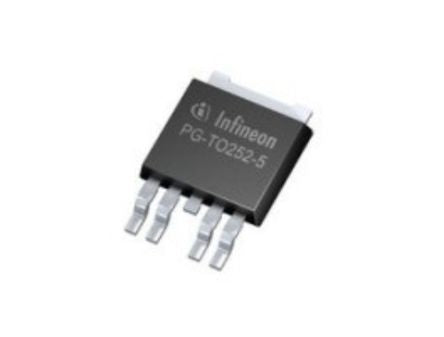

Infineon BTS3160DAUMA1 Smart Low Side Power Switch, Low Side, 7.8A, 6 → 45V 5 + Tab-Pin, TO-252 [BTS3160DAUMA1]; 170-2291
by Infineon
0₫
Mã kho: 1702291
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Low Side Switch |
| Power Switch Topology | Low Side |
| Switch On Resistance | 18mΩ |
| Number of Outputs | 1 |
| Voltage | 6 → 45V |
| Current | 7.8A |
| Mounting Type | Surface Mount |
| Package Type | TO-252 |
| Pin Count | 5 + Tab |
| Dimensions | 6.5 x 2.3 x 6.22mm |
| Length | 6.5mm |
| Width | 2.3mm |
| Height | 6.22mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Series | BTS3160D |
