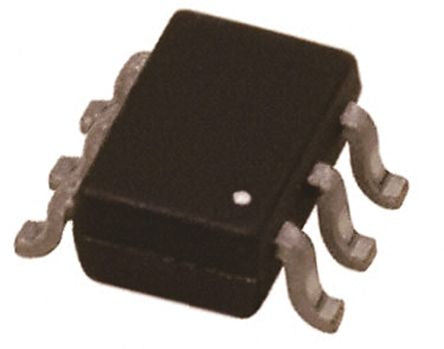

DiodesZetex AP2553W6-7 Load Switch IC, Power Interface Switch, 2.1A, 2.7 → 5.5V, 340mW 6-Pin, SOT-26 [AP2553W6-7]; 122-3387
by DiodesZetex
0₫
Mã kho: 1223387
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Switch Type | Power Interface Switch |
| Switch On Resistance | 135mΩ |
| Number of Outputs | 1 |
| Voltage | 2.7 → 5.5V |
| Current | 2.1A |
| Power Rating | 340mW |
| Mounting Type | Surface Mount |
| Package Type | SOT-26 |
| Pin Count | 6 |
| Dimensions | 3.1 x 1.7 x 1.3mm |
| Length | 3.1mm |
| Width | 1.7mm |
| Height | 1.3mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
