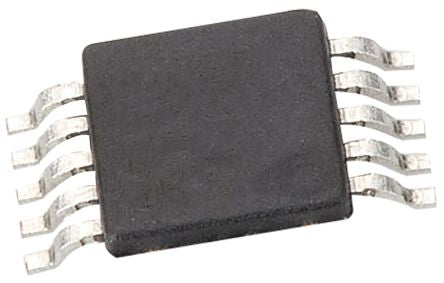

Texas Instruments, Instrumentation Amplifier, 0.1mV Offset, R-RI/O, 3 V, 5 V, 10-Pin MSOP [INA327EA/250]; 660-4866
0₫
Mã kho: 6604866
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Single |
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3 V, 5 V |
| Pin Count | 10 |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Offset Voltage | 0.1mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 10GΩ |
| Minimum CMRR | 100dB |
| Dimensions | 3 x 3 x 1.02mm |
| Length | 3mm |
| Width | 3mm |
| Height | 1.02mm |
