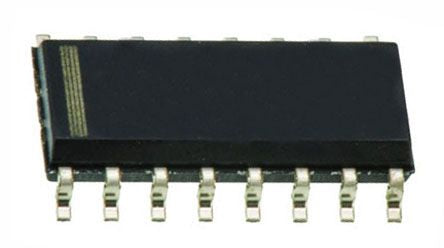

INA2141U Texas Instruments, Instrumentation Amplifier, 0.1mV Offset, 16-Pin SOIC [INA2141U]; 660-5389
0₫
Mã kho: 6605389
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Typical Dual Supply Voltage | ±15V |
| Rail to Rail | No |
| Maximum Input Offset Voltage | 0.1mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 10GΩ |
| Minimum CMRR | 97dB |
| Maximum Supply Current | 1.6 mA |
| Height | 2.35mm |
| Dimensions | 10.28 x 7.52 x 2.35mm |
| Length | 10.28mm |
| Width | 7.52mm |
