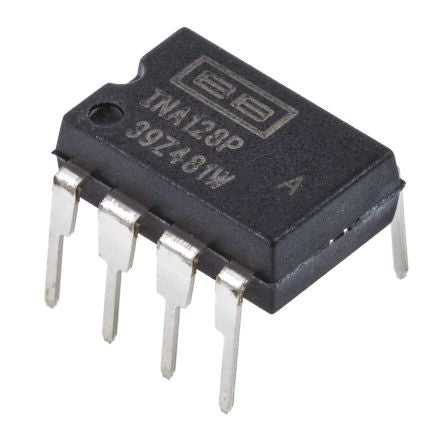

INA128PA Texas Instruments, Instrumentation Amplifier, 125μV Offset 1.3MHz, 8-Pin PDIP [INA128PA]; 207-2388
0₫
Mã kho: 2072388
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±15V |
| Rail to Rail | No |
| Maximum Input Offset Voltage | 125µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 100GΩ |
| Minimum CMRR | 73dB |
| Typical Gain Bandwidth Product | 1.3MHz |
| Length | 9.81mm |
| Width | 6.35mm |
| Dimensions | 9.81 x 6.35 x 4.57mm |
| Height | 4.57mm |
