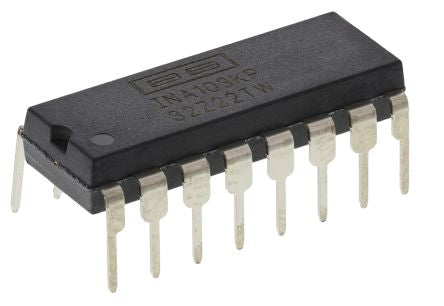

INA103KP Texas Instruments, Instrumentation Amplifier, 30μV Offset 6MHz, 16-Pin PDIP [INA103KP]; 828-684
0₫
Mã kho: 828684
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 16 |
| Typical Dual Supply Voltage | ±15V |
| Rail to Rail | No |
| Maximum Input Offset Voltage | 30µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 0.06GΩ |
| Minimum CMRR | 100dB |
| Typical Gain Bandwidth Product | 6MHz |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Length | 19.3mm |
| Height | 4.57mm |
| Width | 6.35mm |
