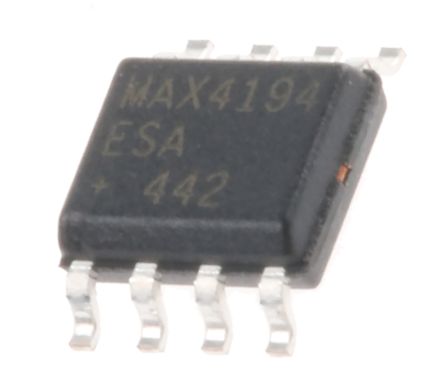

Instrumentation Amplifier, 0.69mV Offset 250kHz, R-RO, 2.7 7.5 V, 8-Pin SOIC [MAX4194ESA+]; 189-7286
0₫
Mã kho: 1897286
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.7 7.5 V |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±1.35 to ±3.75V |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage | 0.69mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 1GΩ |
| Minimum CMRR | 60dB |
| Typical Gain Bandwidth Product | 250kHz |
| Maximum Supply Current | 0.00002 mA |
| Width | 4mm |
| Height | 1.5mm |
| Length | 5mm |
| Dimensions | 5 x 4 x 1.5mm |
