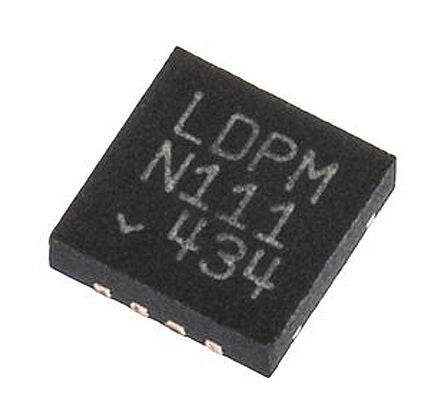

LTC2053IDD#PBF Linear Technology, Instrumentation Amplifier, ±10μV Offset 200kHz, R-RI/O, 2.7 V, 8-Pin DFN [LTC2053IDD#PBF]; 158-0365
0₫
Mã kho: 1580365
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.7 V |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±5V |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Offset Voltage | ±10µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Minimum CMRR | 105dB |
| Typical Gain Bandwidth Product | 200kHz |
| Maximum Supply Current | 1 mA |
| Length | 3mm |
| Dimensions | 3 x 3 x 0.7mm |
| Height | 0.7mm |
| Width | 3mm |
