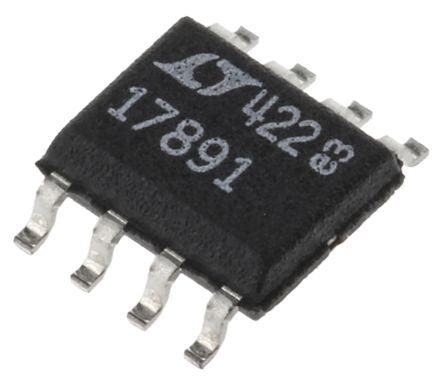

LT1789CS8-1#PBF Linear Technology, Instrumentation Amplifier, 100μV Offset 60kHz, 2.2 36 V, 8-Pin SOIC [LT1789CS8-1#PBF]; 155-5352
0₫
Mã kho: 1555352
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Single |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.2 36 V |
| Pin Count | 8 |
| Maximum Input Offset Voltage | 100µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 1.6GΩ |
| Minimum CMRR | 90dB |
| Typical Gain Bandwidth Product | 60kHz |
| Maximum Supply Current | 95 μA |
| Length | 5mm |
| Width | 3.988mm |
| Height | 1.498mm |
| Dimensions | 5.004 x 3.988 x 1.498mm |
