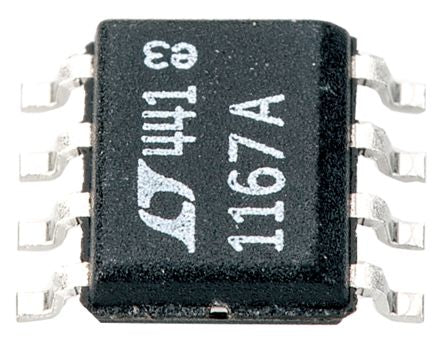

LT1167ACS8#PBF Linear Technology, Instrumentation Amplifier, 0.04mV Offset 1MHz, 8-Pin SOIC [LT1167ACS8#PBF]; 506-0293
0₫
Mã kho: 5060293
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| Rail to Rail | No |
| Maximum Input Offset Voltage | 0.04mV |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Maximum Input Resistance | 1000GΩ |
| Minimum CMRR | 90dB |
| Typical Gain Bandwidth Product | 1MHz |
| Maximum Supply Current | 1.3 mA |
| Height | 1.48mm |
| Dimensions | 5 x 3.99 x 1.48mm |
| Length | 5mm |
| Width | 3.99mm |
