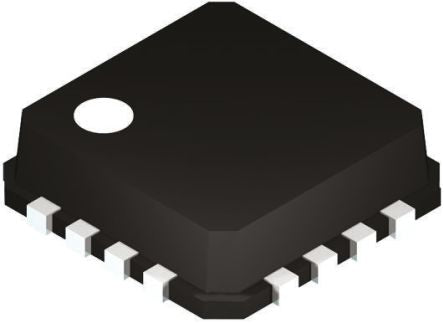

AD8426BCPZ-WP Analog Devices, Instrumentation Amplifier, 100μV Offset 1MHz, R-RO, 2.2 36 V, 16-Pin LFCSP [AD8426BCPZ-WP]; 160-9836
0₫
Mã kho: 1609836
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Package Type | LFCSP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.2 36 V |
| Pin Count | 16 |
| Typical Dual Supply Voltage | ±1.35 ±18V |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage | 100µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Input Resistance | 0.4GΩ |
| Minimum CMRR | 90dB |
| Typical Gain Bandwidth Product | 1MHz |
| Maximum Supply Current | 350 μA |
| Width | 4mm |
| Length | 4mm |
| Dimensions | 4 x 4 x 0.95mm |
| Height | 0.95mm |
