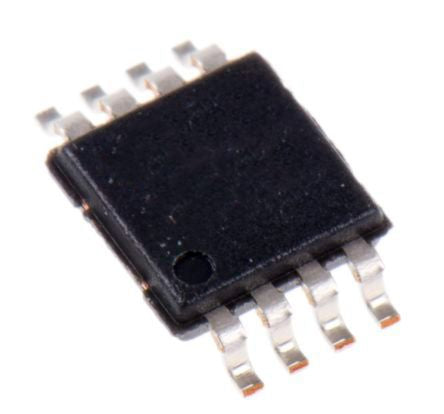

AD8227BRMZ Analog Devices, Instrumentation Amplifier, 100μV Offset 250kHz, R-RO, 2.2 36 V, 8-Pin MSOP [AD8227BRMZ]; 183-1975
0₫
Mã kho: 1831975
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.2 36 V |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±1.5 to ±18V |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage | 100µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Minimum CMRR | 110dB |
| Typical Gain Bandwidth Product | 250kHz |
| Maximum Supply Current | 350 μA |
| Dimensions | 3.2 x 3.2 x 0.95mm |
| Width | 3.2mm |
| Height | 0.95mm |
| Length | 3.2mm |
