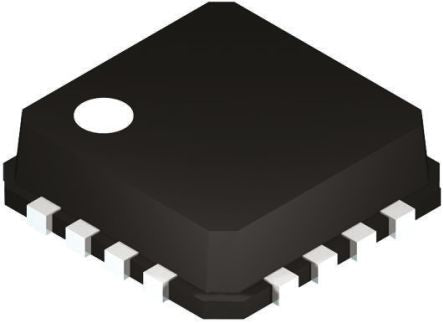

AD8224ACPZ-WP Analog Devices, Instrumentation Amplifier, 300μV Offset 1.5MHz, R-RO, 4.5 36 V, 16-Pin LFCSP [AD8224ACPZ-WP]; 160-1728
0₫
Mã kho: 1601728
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Package Type | LFCSP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 4.5 36 V |
| Pin Count | 16 |
| Typical Dual Supply Voltage | ±2.25 ±18V |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage | 300µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 40kΩ |
| Minimum CMRR | 94dB |
| Typical Gain Bandwidth Product | 1.5MHz |
| Maximum Supply Current | 900 μA |
| Length | 4.1mm |
| Width | 4.1mm |
| Height | 0.95mm |
| Dimensions | 4.1 x 4.1 x 0.95mm |
