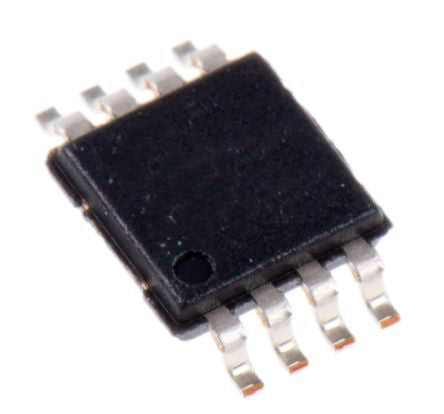

AD623ARMZ-REEL7 Analog Devices, Instrumentation Amplifier, 500μV Offset 800kHz, R-RO, 2.7 12 V, 8-Pin MSOP [AD623ARMZ-REEL7]; 183-1717
0₫
Mã kho: 1831717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 2.7 12 V |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±2.5 to ±6V |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage | 500µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Minimum CMRR | 105dB |
| Typical Gain Bandwidth Product | 800kHz |
| Maximum Supply Current | 550 μA |
| Dimensions | 3.2 x 3.2 x 0.95mm |
| Height | 0.95mm |
| Width | 3.2mm |
| Length | 3.2mm |
