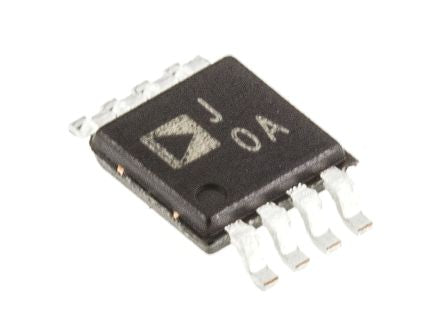

AD623ARMZ Analog Devices, Instrumentation Amplifier, 0.5mV Offset, R-RO, 3 V, 5 V, 9 V, 8-Pin MSOP [AD623ARMZ]; 523-6248
0₫
Mã kho: 5236248
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3 V, 5 V, 9 V |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±3 V, ±5 V |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Offset Voltage | 0.5mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 2GΩ |
| Minimum CMRR | 70dB |
| Dimensions | 3 x 3 x 0.85mm |
| Height | 0.85mm |
| Width | 3mm |
| Length | 3mm |
