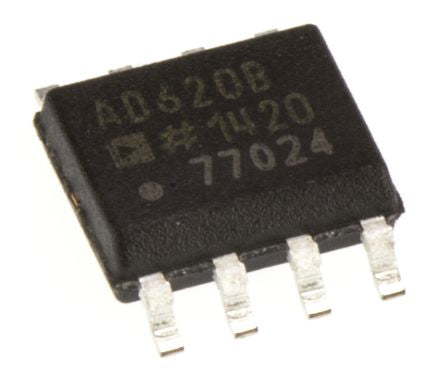

AD620BRZ Analog Devices, Instrumentation Amplifier, 0.05mV Offset 120kHz, 8-Pin SOIC [AD620BRZ]; 523-7572
0₫
Mã kho: 5237572
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| Rail to Rail | No |
| Maximum Input Offset Voltage | 0.05mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 10GΩ |
| Minimum CMRR | 80dB |
| Typical Gain Bandwidth Product | 120kHz |
| Width | 4mm |
| Dimensions | 5 x 4 x 1.5mm |
| Length | 5mm |
| Height | 1.5mm |
