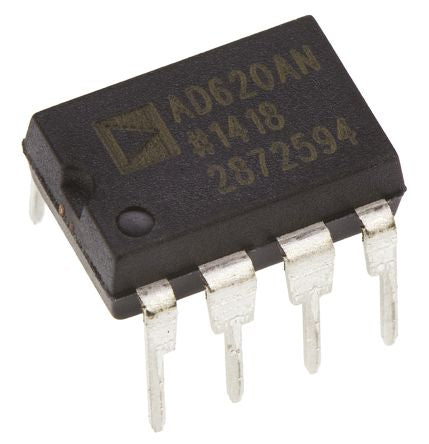

AD620ANZ Analog Devices, Instrumentation Amplifier, 0.125mV Offset 1MHz, 8-Pin PDIP [AD620ANZ]; 522-9717
0₫
Mã kho: 5229717
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| Rail to Rail | No |
| Maximum Input Offset Voltage | 0.125mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 10GΩ |
| Minimum CMRR | 73dB |
| Typical Gain Bandwidth Product | 1MHz |
| Length | 9.27mm |
| Dimensions | 9.27 x 6.35 x 3.3mm |
| Width | 6.35mm |
| Height | 3.3mm |
