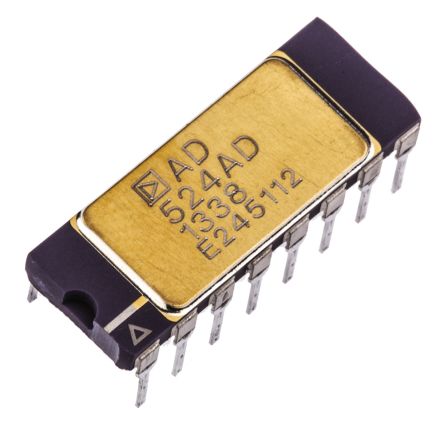

AD524AD Analog Devices, Instrumentation Amplifier, 0.25mV Offset 25MHz, 16-Pin SBCDIP [AD524AD]; 106-6380
0₫
Mã kho: 1066380
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | SBCDIP |
| Mounting Type | Through Hole |
| Pin Count | 16 |
| Typical Dual Supply Voltage | ±15V |
| Maximum Input Offset Voltage | 0.25mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 1GΩ |
| Minimum CMRR | 70dB |
| Typical Gain Bandwidth Product | 25MHz |
| Dimensions | 21.34 x 7.87 x 3.56mm |
| Height | 3.56mm |
| Width | 7.87mm |
| Length | 21.34mm |
