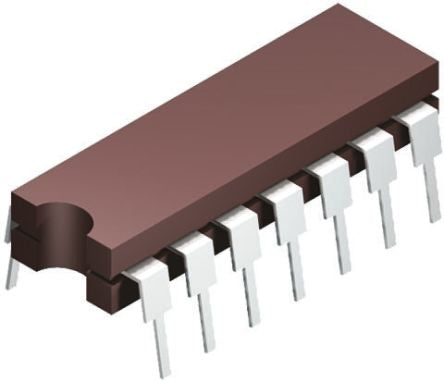

AD521JDZ Analog Devices, Instrumentation Amplifier, 3mV Offset 40MHz, 14-Pin SBCDIP [AD521JDZ]; 709-5721
0₫
Mã kho: 7095721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual |
| Package Type | SBCDIP |
| Mounting Type | Through Hole |
| Pin Count | 14 |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±9 V |
| Rail to Rail | No |
| Maximum Input Offset Voltage | 3mV |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Maximum Input Resistance | 0.01GΩ |
| Minimum CMRR | 70dB |
| Typical Gain Bandwidth Product | 40MHz |
| Height | 3.56mm |
| Dimensions | 19.94 x 7.87 x 3.56mm |
| Width | 7.87mm |
| Length | 19.94mm |
