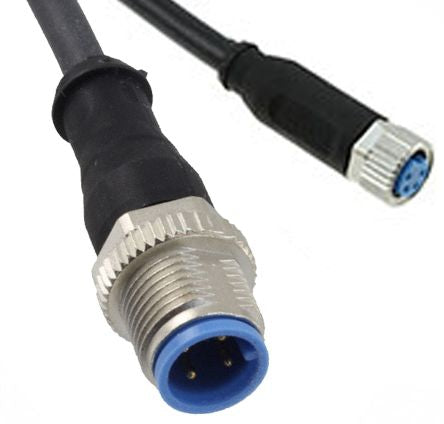

TE Connectivity Straight M8 to Straight M12 Cable assembly, 4 Core , 1.5m Cable [1-2273111-4]; 164-8819
0₫
Mã kho: 1648819
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M8 |
| Connector B | Straight M12 |
| Length | 1.5m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Connector B Number of Contacts | 4 |
| Current Rating | 0.166666666666667 |
| Sheath Colour | Black |
| IP Rating | IP65, IP67 |
| Voltage Rating | 30 V ac/dc |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Connector A Housing Gender | Socket |
| Connector B Housing Gender | Plug |
| Standards Met | CSA, ELV Compliant, EN 60529, RoHS Compliant, UL |
| Minimum Operating Temperature | -30°C |
| Insulation Material | PVC |
| Shielding | Unshielded |
| American Wire Gauge | 24 |
| Outer Diameter | 4.8mm |
| Maximum Operating Temperature | +80°C |
| Outer Sheath Material | PVC |
| Minimum Bend Radius | 48 mm |
| Sheath Material | Polyurethane PUR |
