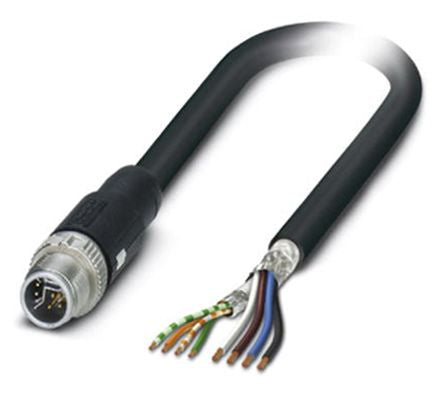

Phoenix Contact NBC-MSY/ 2.0-94H SCO Series, Straight M12 to Unterminated Cable assembly, 4 Core , 1.5m Cable [1407488]; 883-1032
0₫
Mã kho: 8831032
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Connector A | Straight M12 |
Connector B | Unterminated |
Length | 1.5m |
Number of Cores | 4 |
Connector A Number of Contacts | 8 |
Current Rating | 6 (Power) A, 500 (Data) mA |
Sheath Colour | Black |
Number of Strands | 19 |
IP Rating | IP65, IP67 |
Voltage Rating | 30 V |
Cable Shape | Multicore |
Cross Sectional Area | 0.25 mm² |
Maximum Operating Temperature | +70 (Fiexible) °C, +90 (Fixed) °C |
Size of Strands | 0.1 (Signal) mm, 0.2 (Voltage Supply) mm |
Conductor Material | CuZn |
Outer Sheath Material | Polyurethane |
Minimum Bend Radius | 10 x D |
Series | NBC-MSY/ 2.0-94H SCO |
Connector A Housing Gender | Plug |
American Wire Gauge | 20 AWG, 26 AWG |
Sheath Material | Polyurethane PUR |
Characteristic Impedance | 100 Ω |
Outer Diameter | 7.6mm |
Shielding | Unshielded |
Conductor Resistance | 5 m |
Minimum Operating Temperature | -40 (Fixed) °C, -30 (Flexible) °C |
Standards Met | IEC 11801, IEC 60754, IEC 60811-2-1, UL 1581, VDE 0282, VDE 0472 |
Oil Resistant | Yes |
Insulation Material | PP |
