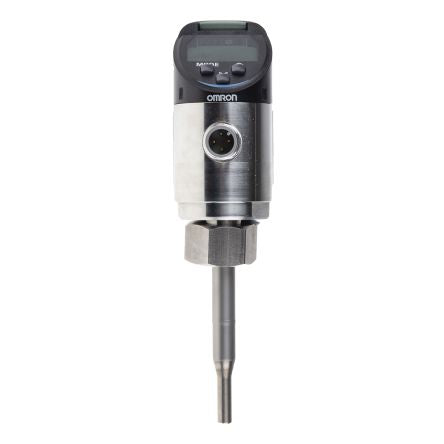

![Omron E8FC-25T 1810651](http://nguyenxuong.com/cdn/shop/products/F1810651-01_444x444.jpg?v=1594280865)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Media Monitored | Liquid |
Device Type | Flow Sensor |
Minimum Flow Rate | 0.6 (Nominal Diameter B 3/8 in) L/min, 1 (Nominal Diameter B 1/2 in) L/min, 1.5 (Nominal Diameter B 3/4 in) L/min, 2 (Nominal Diameter B 1 in) L/min |
Maximum Flow Rate | 14 (Nominal Diameter B 3/8 in) L/min, 30 (Nominal Diameter B 1/2 in) L/min, 60 (Nominal Diameter B 3/4 in) L/min, 100 (Nominal Diameter B 1 in) L/min |
Supply Voltage | 15 → 30 V dc |
Pipe Diameter Range | 9.525 mm, 12.7 mm, 19.05 mm, 25.4 mm |
Connection Type | M12 4 Pole Connector |
Maximum Pressure | 10MPa |
Material | Chassis), FKM (O-Ring), PBT (Button), PES (Display Unit), PPSU (Head), SUS304 (Nut), SUS304L (Detecting Unit |
Minimum Media Temperature | 0 °C |
Maximum Media Temperature | +85°C |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
Series | E8FC |
Current Rating | 192 mA |
