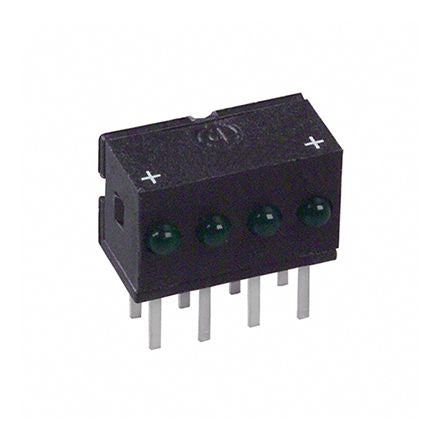

Dialight 555-4301F, Green Right Angle PCB LED Indicator, 4 LEDs 2mm (T-3/4), Through Hole [555-4301F]; 890-7110
by Dialight
0₫
Mã kho: 8907110
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | Green |
| Number of LEDs | 4 |
| Mounting Type | Through Hole |
| Number of Pins | 8 |
| Viewing Angle | 40 ° |
| Dominant Wavelength | 569 nm |
| LED Orientation | Right Angle |
| Dimensions | 6.22 x 10.29 x 6.35mm |
| Length | 6.22mm |
| Width | 10.29mm |
| Height | 6.35mm |
| LED Size | 2mm (T-3/4) |
| Lens Finish | Non-Diffused |
| Power Dissipation | 80mW |
| Configuration | Quad-Level |
| Lens Colour | Green |
| Standards Met | EC 825-1, EN-60825-1, MIL-STD-202F, RoHS Compliant, UL 94V-0 |
| Series | 555 |
| Intensity | 1mcd |
