![STMicroelectronics STGFW30V60DF 7925779](http://nguyenxuong.com/cdn/shop/products/R6714982-01_cbb1ff59-dc23-4651-bb3c-41b3551db864_291x413.jpg?v=1594019665)

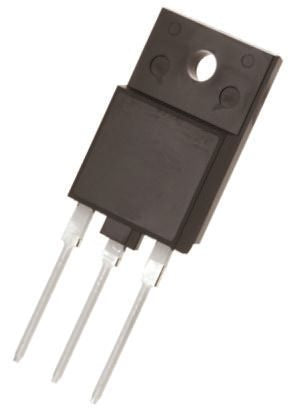

STMicroelectronics STGFW30V60DF IGBT, 60 A 600 V, 3-Pin TO-3PF [STGFW30V60DF]; 792-5779
0₫
Mã kho: 7925779
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 60 A |
Maximum Collector Emitter Voltage | 600 V |
Maximum Gate Emitter Voltage | ±20V |
Maximum Power Dissipation | 58 W |
Package Type | TO-3PF |
Mounting Type | Through Hole |
Pin Count | 3 |
Switching Speed | 1MHz |
Transistor Configuration | Single |
Length | 15.7mm |
Width | 5.7mm |
Height | 26.7mm |
Dimensions | 15.7 x 5.7 x 26.7mm |
Maximum Operating Temperature | +175 °C |
Minimum Operating Temperature | -55 °C |
