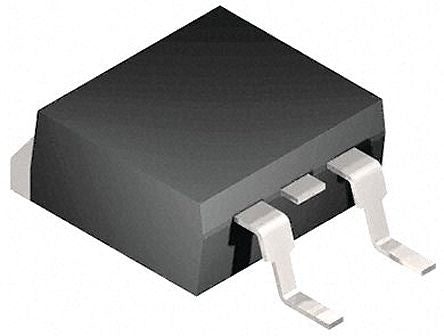

STMicroelectronics STGB25N40LZAG IGBT, 25 A 435 V, 3-Pin D2PAK [STGB25N40LZAG]; 164-6957
0₫
Mã kho: 1646957
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 25 A |
| Maximum Collector Emitter Voltage | 435 V |
| Maximum Gate Emitter Voltage | 16V |
| Maximum Power Dissipation | 150 W |
| Number of Transistors | 1 |
| Package Type | D2PAK |
| Mounting Type | Surface Mount |
| Channel Type | N |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 9.35mm |
| Dimensions | 10.4 x 4.6 x 9.35mm |
| Automotive Standard | AEC-Q101 |
| Energy Rating | 320 |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Gate Capacitance | 1011pF |
