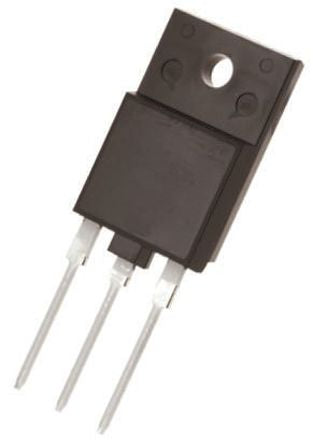

ROHM RGTH50TK65GC11 IGBT, 26 A 650 V, 3-Pin TO-3PFM [RGTH50TK65GC11]; 150-1508
by ROHM
0₫
Mã kho: 1501508
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 26 A |
| Maximum Collector Emitter Voltage | 650 V |
| Maximum Gate Emitter Voltage | ±30V |
| Maximum Power Dissipation | 59 W |
| Number of Transistors | 1 |
| Package Type | TO-3PFM |
| Mounting Type | Through Hole |
| Channel Type | N |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Length | 16mm |
| Width | 5mm |
| Height | 21mm |
| Dimensions | 16 x 5 x 21mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +175 °C |
| Gate Capacitance | 57pF |
