![ON Semiconductor FGPF15N60UNDF 1454385](http://nguyenxuong.com/cdn/shop/products/R8070785-01_4609c732-58f0-4ce6-966a-5049f6674ad3_444x311.jpg?v=1594453952)

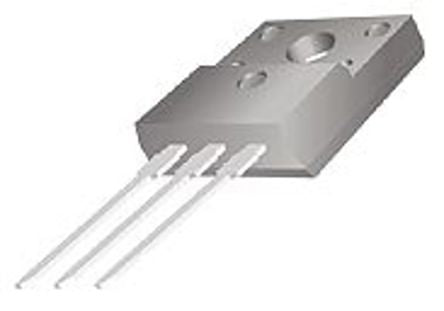

ON Semiconductor FGPF15N60UNDF IGBT, 30 A 600 V, 3-Pin TO-220F [FGPF15N60UNDF]; 145-4385
0₫
Mã kho: 1454385
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 30 A |
Maximum Collector Emitter Voltage | 600 V |
Maximum Gate Emitter Voltage | ±20V |
Maximum Power Dissipation | 42 W |
Package Type | TO-220F |
Mounting Type | Through Hole |
Channel Type | N |
Pin Count | 3 |
Switching Speed | 1MHz |
Transistor Configuration | Single |
Length | 10.36mm |
Width | 2.74mm |
Height | 16.07mm |
Dimensions | 10.36 x 2.74 x 16.07mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
