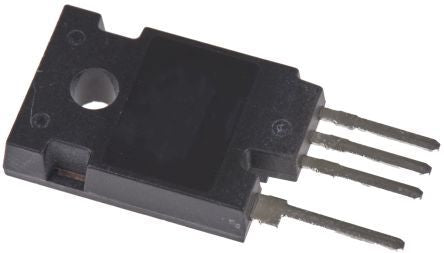

ON Semiconductor FGH75T65SHDTL4 P-Channel IGBT, 150 A 650 V, 4-Pin TO-247 [FGH75T65SHDTL4]; 181-1889
0₫
Mã kho: 1811889
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 150 A |
| Maximum Collector Emitter Voltage | 650 V |
| Maximum Gate Emitter Voltage | ±20V |
| Number of Transistors | 1 |
| Maximum Power Dissipation | 455 W |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Channel Type | P |
| Pin Count | 4 |
| Switching Speed | 1MHz |
| Transistor Configuration | Single |
| Length | 15.8mm |
| Width | 5.2mm |
| Height | 22.74mm |
| Dimensions | 15.8 x 5.2 x 22.74mm |
| Energy Rating | 160µJ |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Gate Capacitance | 3710pF |
