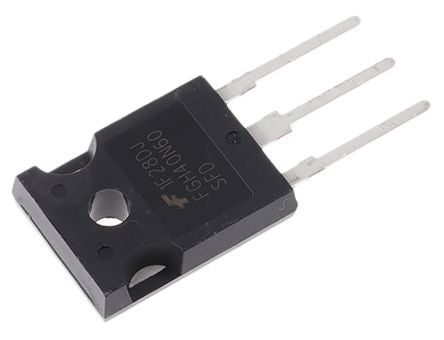

![ON Semiconductor FGH40N60SFDTU 1241334](http://nguyenxuong.com/cdn/shop/products/F7599267-02_444x340.jpg?v=1593990766)
ON Semiconductor FGH40N60SFDTU IGBT, 80 A 600 V, 3-Pin TO-247 [FGH40N60SFDTU]; 124-1334
0₫
Mã kho: 1241334
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 80 A |
Maximum Collector Emitter Voltage | 600 V |
Maximum Gate Emitter Voltage | ±20V |
Maximum Power Dissipation | 290 W |
Package Type | TO-247 |
Mounting Type | Through Hole |
Channel Type | N |
Pin Count | 3 |
Transistor Configuration | Single |
Length | 15.6mm |
Width | 4.7mm |
Height | 20.6mm |
Dimensions | 15.6 x 4.7 x 20.6mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
