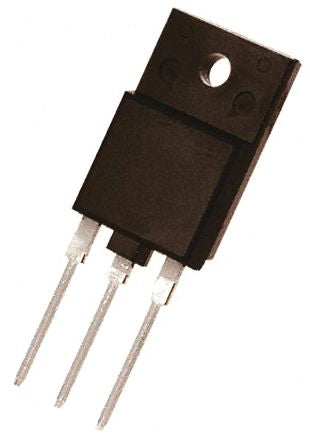

ON Semiconductor FGAF20N60SMD IGBT, 40 A 600 V, 3-Pin TO-3PF [FGAF20N60SMD]; 145-4382
0₫
Mã kho: 1454382
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 40 A |
| Maximum Collector Emitter Voltage | 600 V |
| Maximum Gate Emitter Voltage | ±20V |
| Maximum Power Dissipation | 75 W |
| Package Type | TO-3PF |
| Mounting Type | Through Hole |
| Channel Type | N |
| Pin Count | 3 |
| Switching Speed | 1MHz |
| Transistor Configuration | Single |
| Length | 15.7mm |
| Width | 3.2mm |
| Height | 26.7mm |
| Dimensions | 15.7 x 3.2 x 26.7mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
