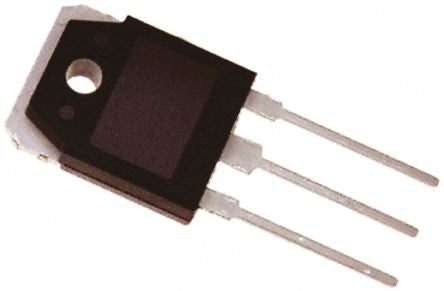

ON Semiconductor FGA30N65SMD IGBT, 60 A 650 V, 3-Pin TO-3PN [FGA30N65SMD]; 146-2045
0₫
Mã kho: 1462045
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 60 A |
Maximum Collector Emitter Voltage | 650 V |
Maximum Gate Emitter Voltage | ±20V |
Maximum Power Dissipation | 300 W |
Package Type | TO-3PN |
Mounting Type | Through Hole |
Channel Type | N |
Pin Count | 3 |
Transistor Configuration | Single |
Length | 16.2mm |
Width | 5mm |
Height | 20.1mm |
Dimensions | 16.2 x 5 x 20.1mm |
Maximum Operating Temperature | +175 °C |
Minimum Operating Temperature | -55 °C |
