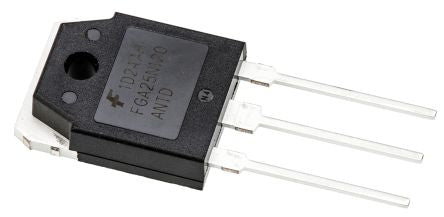

ON Semiconductor FGA25N120ANTDTU IGBT, 50 A 1200 V, 3-Pin TO-3P [FGA25N120ANTDTU]; 772-9222
0₫
Mã kho: 7729222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 50 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Maximum Power Dissipation | 312 W |
| Package Type | TO-3P |
| Mounting Type | Through Hole |
| Channel Type | N |
| Pin Count | 3 |
| Switching Speed | 1MHz |
| Transistor Configuration | Single |
| Length | 15.8mm |
| Width | 5mm |
| Height | 18.9mm |
| Dimensions | 15.8 x 5 x 18.9mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
