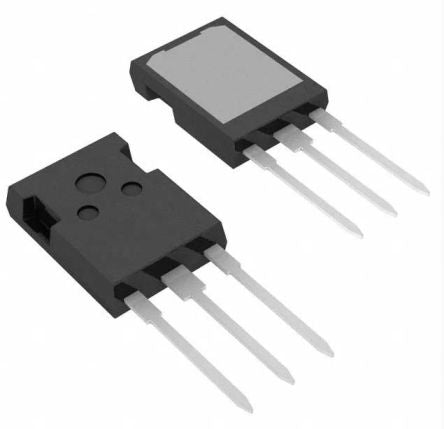

IXYS IXYX30N170CV1 IGBT, 100 A 1700 V, 3-Pin PLUS247 [IXYX30N170CV1]; 146-4408
by IXYS
0₫
Mã kho: 1464408
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 100 A |
| Maximum Collector Emitter Voltage | 1700 V |
| Maximum Gate Emitter Voltage | ±20 (Continuous) V, ±30 (Transient) V |
| Maximum Power Dissipation | 937 W |
| Number of Transistors | 1 |
| Package Type | PLUS247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Length | 16.13mm |
| Width | 5.21mm |
| Height | 21.34mm |
| Dimensions | 16.13 x 5.21 x 21.34mm |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
