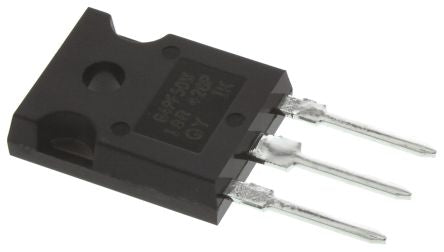

Infineon IRG4PF50WPBF IGBT, 51 A 900 V, 3-Pin TO-247AC [IRG4PF50WPBF]; 124-8979
by Infineon
0₫
Mã kho: 1248979
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 51 A |
Maximum Collector Emitter Voltage | 900 V |
Maximum Gate Emitter Voltage | ±20V |
Package Type | TO-247AC |
Mounting Type | Through Hole |
Channel Type | N |
Pin Count | 3 |
Transistor Configuration | Single |
Length | 15.9mm |
Width | 5.3mm |
Height | 20.3mm |
Dimensions | 15.9 x 5.3 x 20.3mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
