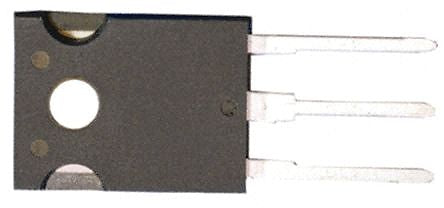

Infineon IKQ50N120CT2XKSA1 P-Channel IGBT, 100 A 1200 V, 3-Pin TO-247 [IKQ50N120CT2XKSA1]; 162-3322
by Infineon
0₫
Mã kho: 1623322
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Continuous Collector Current | 100 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±30V |
| Maximum Power Dissipation | 652 W |
| Number of Transistors | 1 |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Channel Type | P |
| Pin Count | 3 |
| Switching Speed | 20kHz |
| Transistor Configuration | Single |
| Length | 15.9mm |
| Width | 5.1mm |
| Height | 21.1mm |
| Dimensions | 15.9 x 5.1 x 21.1mm |
| Gate Capacitance | 3270pF |
| Minimum Operating Temperature | -40 °C |
| Energy Rating | 7.1 |
| Maximum Operating Temperature | +175 °C |
