![Infineon IHW40N120R3FKSA1 1702372](http://nguyenxuong.com/cdn/shop/products/F1702372-01_444x444.jpg?v=1594324491)

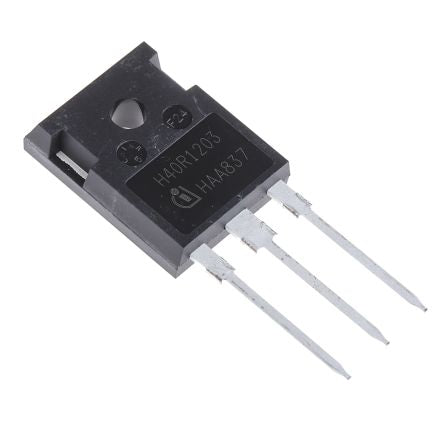

Infineon IHW40N120R3FKSA1 IGBT, 80 A 1200 V, 3-Pin TO-247 [IHW40N120R3FKSA1]; 170-2372
by Infineon
0₫
Mã kho: 1702372
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Continuous Collector Current | 80 A |
Maximum Collector Emitter Voltage | 1200 V |
Maximum Gate Emitter Voltage | ±20V |
Number of Transistors | 1 |
Maximum Power Dissipation | 429 W |
Package Type | TO-247 |
Mounting Type | Through Hole |
Channel Type | N |
Pin Count | 3 |
Transistor Configuration | Single |
Length | 16.13mm |
Width | 5.21mm |
Height | 21.1mm |
Dimensions | 16.13 x 5.21 x 21.1mm |
Minimum Operating Temperature | -40 °C |
Energy Rating | 2.02mJ |
Maximum Operating Temperature | +175 °C |
